Specialized S-Works Tarmac SL8 Frameset - 2024

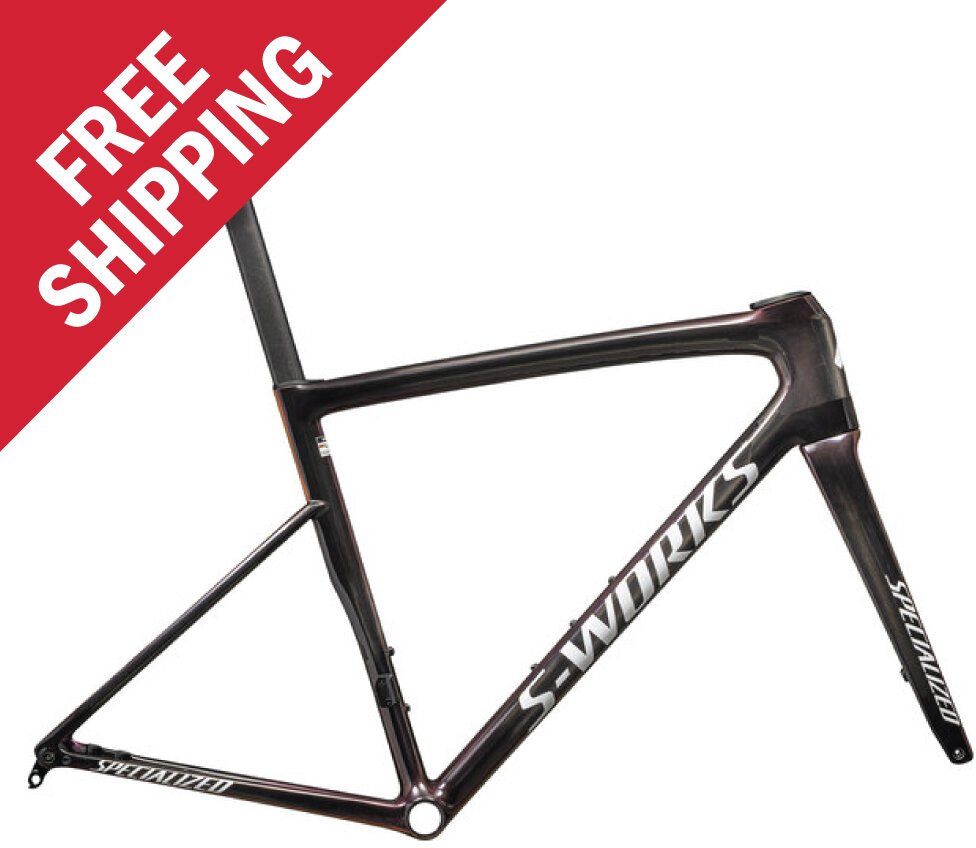

Specialized S-Works Tarmac SL8 Frameset
  • Color: Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White
  • Color: Gloss Red Sky/Metallic White Silver
  • Color: Satin Carbon/Black Tint Over Chameleon Blend
  • Color: Gloss White Dune White Pearl Impasto
  • Color: Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon
  • Color: Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade
  • Color: Satin Powder Indigo/Amber Glow Strata
$5,500.00
Color:
Size: Select size
Please select options Unavailable

Details

Nothing is faster than the Tarmac SL8 thanks to a combination of aerodynamics, lightweight, and ride quality previously thought impossible. After eight generations and over two decades of development, it's more than the fastest Tarmac ever—it's the world's fastest race bike. Your legs up for it?

AERO IN EVERYTHING

We're putting aero where it matters—the leading edge—not just where it looks good. In the process, we've created our most aerodynamic road bike ever. Yes, it's more aero than the Venge. Clean air is optimized for maximum advantage with the Tarmac's new nose cone—the Speed Sniffer. By moving the steer tube back—the tube that determines head tube width—the leading edge of the head tube can be much sharper, delivering a much lower drag shape. Utilizing new UCI rules, the Tarmac SL8 has the narrowest, most aero seat post we've ever made ensuring fast-moving, dirty air around the legs can flow back more cleanly. Doesn't victory smell sweet?

GOES LIKE HELL, RIDES LIKE HEAVEN

With massive gains in stiffness-to-weight—an improvement of 33% over the SL7—the Tarmac SL8 takes legendary handling, aggressive responsiveness, and World Championship-proven geometry to the next level. The bike is stiffer at the pedals, more precise at the bars, and combines it with a compliant ride in the saddle that sets a new benchmark for race bike comfort. Thanks to our Rider-First Engineering, every rider, regardless of size, gets the same unprecedented ride quality and handling. In the saddle the Tarmac SL8 delivers 6% more compliance, floating over rough roads with a supple feel unique in the high-strung world of race bikes. Tarmac's proven geometry and 32mm tire clearance are identical to the SL7, ensuring easy adaptation and the versatility to run higher volume tires when needed.

BEYOND GENDER

There can be more differences between two male cyclists than between a male and female. Gender alone doesn't provide nearly enough data to specialize and that means creating male or female bikes is arbitrary and outdated. Every rider can get the next-level advantage of Tarmac SL8. It's time to go Beyond Gender.

68mm threaded bottom bracket, flat mount disc brakes, and no-hassle seamless integration—the S-Works Tarmac SL8 Frameset is the ultimate starting point for your dream build.

Sizes:
Frame Size44495254565861
Stack to Stem (mm) 509 522 535 552 573 599 620
Reach to Stem (mm) 363 372 377 381 393 400 406
Frame Stack (mm) 501 514 527 544 565 591 612
Frame Reach (mm) 366 375 380 384 395 402 408
Head Tube Length (mm) 99 109 120 137 157 184 204
Head Tube Angle 70.5° 71.75° 72.5° 73° 73.5° 73.5° 74°
BB Height (mm) 266 266 266 268 268 268 268
BB Drop (mm) 74 74 74 72 72 72 72
Trail (mm) 71 63 58 58 55 55 52
Fork Length, Full (mm) 370 370 370 370 370 370 370
Fork Rake/Offset (mm) 47 47 47 44 44 44 44
Front Center (mm) 572 574 577 579 592 606 613
Chainstay Length (mm) 410 410 410 410 410 410 410
Wheelbase (mm) 970 973 975 978 991 1006 1013
Top Tube Length, Horizontal (mm) 496 509 531 541 563 577 595
Bike Standover Height (mm) 723 735 746 768 786 808 834
Seat Tube Length (mm) 433 445 456 473 494 515 545
Seat Tube Angle 75.5° 75.5° 74° 74° 73.5° 73.5° 73°
Stem Length (mm) 80 100 110 70 90 100 110
Seatpost Length (mm) 300 380 380 300 300 380 380

Specs

Frame S-Works Tarmac SL8 FACT 12r Carbon, Rider First EngineeredTM, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc. 685g frame.
Fork S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Seatpost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 44cm 888818890224 74924-0144 TAR352587214
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 49cm 888818890088 74924-0149 TAR354124599
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 52cm 888818888962 74924-0152 TAR354170642
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 54cm 888818890064 74924-0154 TAR355406114
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 56cm 888818889259 74924-0156 TAR356485996
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 58cm 888818888764 74924-0158 TAR354136258
Gloss Carbon/Viavi Maganta Gold/Chaos Red Pearl/White / 61cm 888818889426 74924-0161 TAR359830341
Gloss White Dune White Pearl Impasto / 44cm 888818890125 74924-0244 TAR359895074
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 44cm 888818889273 74924-0344 TAR354047514
Gloss White Dune White Pearl Impasto / 49cm 888818889471 74924-0249 TAR35934849
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 49cm 888818889266 74924-0349 TAR355659399
Gloss White Dune White Pearl Impasto / 52cm 888818889761 74924-0252 TAR359904762
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 52cm 888818889204 74924-0352 TAR357822962
Gloss White Dune White Pearl Impasto / 54cm 888818889921 74924-0254 TAR355651714
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 54cm 888818889013 74924-0354 TAR354300324
Gloss White Dune White Pearl Impasto / 56cm 888818890217 74924-0256 TAR351476456
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 56cm 888818889815 74924-0356 TAR351504746
Gloss White Dune White Pearl Impasto / 58cm 888818889020 74924-0258 TAR354654898
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 58cm 888818889952 74924-0358 TAR355529558
Gloss White Dune White Pearl Impasto / 61cm 888818889358 74924-0261 TAR356632591
Gloss Cqv Reflex Fine Gold Pearl Over White/Satin Carbon / 61cm 888818890002 74924-0361 TAR358903581
Satin Carbon/Black Tint Over Chameleon Blend / 44cm 888818888887 74924-0644 TAR364574224
Gloss Red Sky/Metallic White Silver / 44cm 888818889136 74924-0444 TAR342231644
Satin Carbon/Black Tint Over Chameleon Blend / 49cm 888818890163 74924-0649 TAR368754249
Gloss Red Sky/Metallic White Silver / 49cm 888818889556 74924-0449 TAR34184059
Satin Carbon/Black Tint Over Chameleon Blend / 52cm 888818889341 74924-0652 TAR362366242
Gloss Red Sky/Metallic White Silver / 52cm 888818890149 74924-0452 TAR344844472
Satin Carbon/Black Tint Over Chameleon Blend / 54cm 888818889365 74924-0654 TAR36672184
Gloss Red Sky/Metallic White Silver / 54cm 888818889907 74924-0454 TAR341468424
Satin Carbon/Black Tint Over Chameleon Blend / 56cm 888818889747 74924-0656 TAR365617096
Gloss Red Sky/Metallic White Silver / 56cm 888818889334 74924-0456 TAR347672056
Satin Carbon/Black Tint Over Chameleon Blend / 58cm 888818889891 74924-0658 TAR362461268
Gloss Red Sky/Metallic White Silver / 58cm 888818889709 74924-0458 TAR346411758
Satin Carbon/Black Tint Over Chameleon Blend / 61cm 888818888948 74924-0661 TAR36888851
Gloss Red Sky/Metallic White Silver / 61cm 888818889174 74924-0461 TAR349840991
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 44cm 888818889594 74924-0744 TAR396151784
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 49cm 888818889303 74924-0749 TAR392318269
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 52cm 888818890156 74924-0752 TAR39718662
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 54cm 888818889716 74924-0754 TAR393608714
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 56cm 888818888993 74924-0756 TAR399288376
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 58cm 888818888917 74924-0758 TAR393416778
Satin Carbon/Viavi Cynan Blue/Viavi Silver-Blue Pearl Edge Fade / 61cm 888818888894 74924-0761 TAR398737741
Satin Powder Indigo/Amber Glow Strata / 44cm 888818889655 74924-0544 TAR375315584
Satin Powder Indigo/Amber Glow Strata / 49cm 888818889686 74924-0549 TAR372667289
Satin Powder Indigo/Amber Glow Strata / 52cm 888818889693 74924-0552 TAR378219572
Satin Powder Indigo/Amber Glow Strata / 54cm 888818889570 74924-0554 TAR379115524
Satin Powder Indigo/Amber Glow Strata / 56cm 888818890170 74924-0556 TAR377099726
Satin Powder Indigo/Amber Glow Strata / 58cm 888818889112 74924-0558 TAR378924948
Satin Powder Indigo/Amber Glow Strata / 61cm 888818889464 74924-0561 TAR371092101
